Sigma Jet CFR 21 Compliant

USFDA CFR Title 21 compliant. US food and drug administration requires for pharmaceutical industries to keep log of electronic records and electronic signatures (ERES).

It’s well known for its trouble free and reliable performance. World over, round the clock, these sealers have performed continuous duty operations in various industrial applications.

With over 25 years experience in the packaging industry, our R & D team has many opportunities to apply induction sealing technology for various container shapes and sizes. As a result, customers can choose from a standard flat sealing head, tunnel sealing head or a customized sealing head for almost any closure design including CRC caps, Dome caps, Sports caps(spout caps), Snap-On caps etc.

If you have a product filled in a container, No matter what shape & size, we will seal it at your desired line speeds.

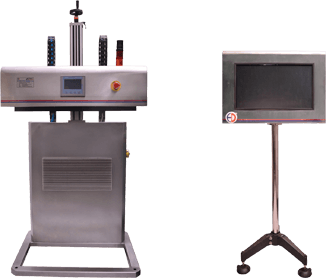

Sigma Jet is shipped fully assembled and designed to fit into the most production lines without making modification. The built-in castors provide added mobility to be moved from one line to another.

Features

  • Password Security
  • User management system and privileges
  • Electronic data storage
  • Touch screen control control for inspection and rejection
  • Easy to use and inituitive touch screen design
  • Audit Trial
  • System & Data back-up
  • Report Generation
  • CFR 21 complaince possible
  • Sealing Head Moving Standard-350mm

Maximum Line Speed: 100 Feet / minute.

Specifications

Input : 415 V AC ± 10%, Three Phase, 50/60 Hz
Max. Line Speed : 100 feet/minute
Cap Size : 20 mm - 120 mm
Net Weight : 150 Kg
Dimensions : 70.85" (H) x 30.3" (W) x 33.5" (L)

* Three Phase: 4 wire system (i.e. R, Y, B, Earth)

Accessories (Optional)

This system has many optional value added accessories like :

  • No Cap Detector
  • No Foil Detector
  • Bottle Jamming Detector
  • Bottle Counter
  • Auto Start/Stop System
  • High/Crooked Cap Detector
  • Auto Reject System
  • Batch Processorr
  • Recipe Storage & Recall
  • Conveyor Stop System
  • Tower Light & Alarm
  • Excess/Consecutive Faults Alarm
  • Multi level password Control
  • Auto Bottle Sampler
  • Reject Bottle Verification
