Sigma III Touch High-Speed Automatic Induction Cap Sealer
Touch-Screen + Recipe Control
IGBT Solid-State
GMP-Ready
80 FPM
Line Speed
20 to 100 mm
Cap Range
350 mm
Coil Travel
24/7
Duty Rated
80 FPM
20 to 120 mm
Cap Diameter Range
350 mm
230 V
100% Air-Cooled
PLC + Touch
An 80 FPM Sealer That Runs Itself
The Sigma III Touch is the automatic, inline workhorse of the Sigma sealing range. It is the step up from semi-automatic and entry inline models for high-volume lines that cannot stop. The self-standing design needs no mounting brackets and no cart, so it drops into your line and locks in place.
One universal sealing coil seals every cap from 20 mm to 120 mm, and touch-screen recipe management makes SKU changeover near instant. Castor wheels and station pads let you relocate and secure the machine in minutes, so a line changeover never becomes a project.
How the Sigma III Touch Works
1
Feed and Convey

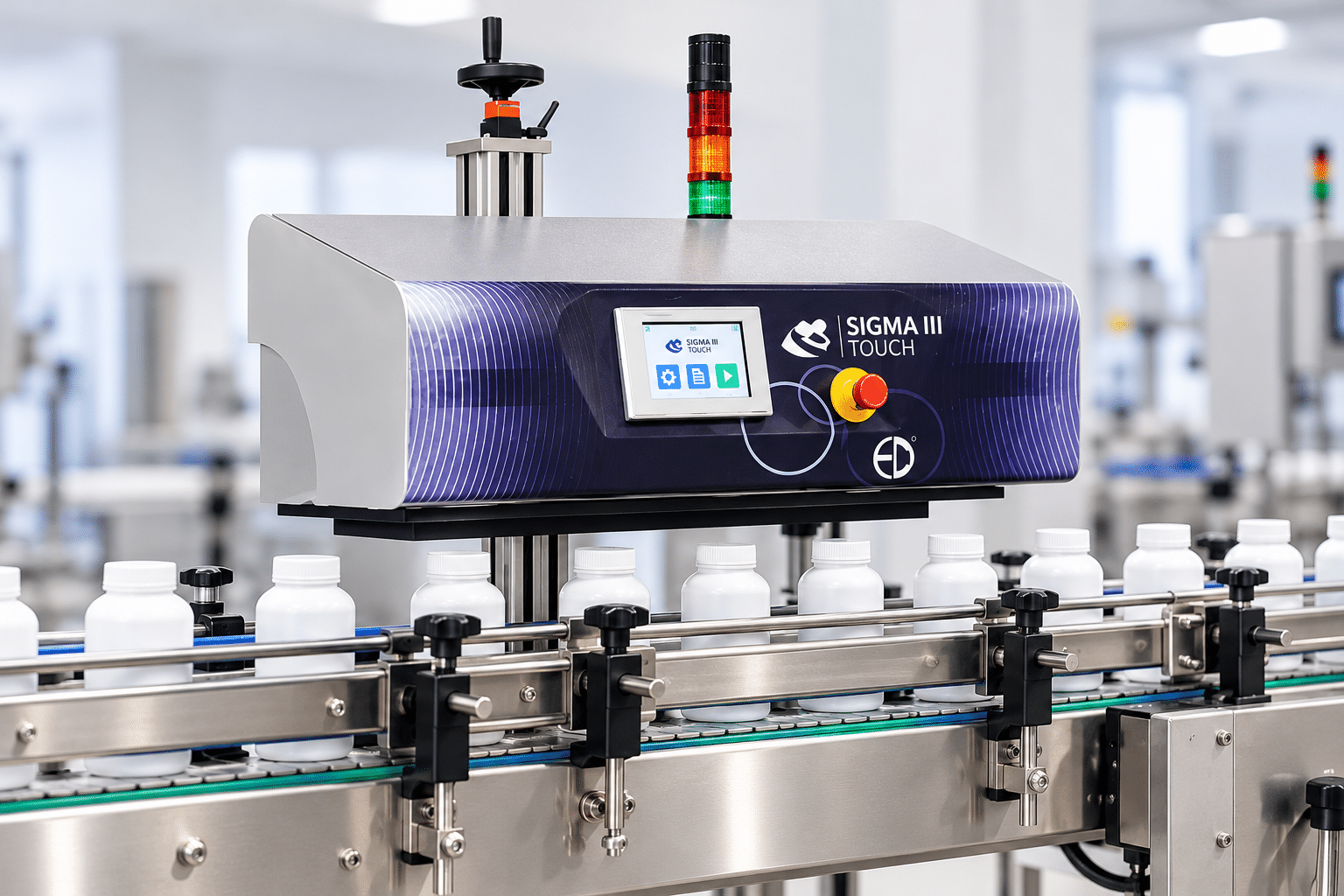

Capped containers move on the conveyor at up to 80 feet per minute under the sealing head (Sealing coil). No manual handling and no operator at the head.
2
Induction Seal
3
Inspect and Reject
4
Monitor and Repeat
A clean seal depends on line speed, power output and cap torque. The recipe holds these settings for you, so a run stays consistent and auditable for quality records from the first bottle to the last.
See the Sigma III Touch in Action
Sigma III Touch Brochure
Full specifications, features and application notes in a single PDF for your evaluation file.
Key Features and Engineering Advantages
80 FPM Inline Throughput
Automatic conveyor sealing at up to 80 feet per minute for high-volume, continuous lines that run all shift.
Touch-Screen and Recipe Management
An intuitive HMI with supervisory password and operator lockout, stored recipes, and descriptive fault information.
Inspection, Rejection and Counters
On-board seal inspection with reject control, plus container, cap and foil counters that keep every run auditable.
IGBT, 100% Digital Variable Output
Solid-state power with no tap changing on the transformer and no effect from voltage fluctuation, so the seal stays stable.
Waterless, 100% Air-Cooled, Ambient Operation
No water circulation and no water lines. This removes a common downtime source and cuts the maintenance and floor-space cost.
Universal Coil and Fast Changeover
One coil seals 20 to 120 mm. With 350 mm head travel, a height indicator, a position lock, castor wheels and station pads, changeover is quick and repeatable.
Cap and Container Compatibility
Caps & Closures
- Child-resistant caps (CRC)
- Dome caps
- Sports caps and spout caps
- Snap-on caps
- Flip-top caps
- Standard continuous-thread screw caps
- Conical caps
Container Materials
- HDPE and LDPE bottles
- PET containers
- PP containers
- Glass containers
- Plastic caps with a foil liner
- Seal depends on the foil liner, not the shell
Liners & Sealing Heads
- Two-piece foil induction liners
- One-piece foil induction liners
- Heat-seal wads matched to cap size
- Flat sealing head
- Tunnel sealing head
- Custom head for unusual closures
Where the Sigma III Touch Fits in the Range
The Sigma III Touch sits in the 80 feet per minute tier, between the Sigma II Neo Touch and the Sigma Jet. Start manual, scale to automatic, and stay on one platform and one supplier as your volume grows.
- Model
- Type and Speed
- Best For
Sigma Flex
Manual, 4 to 8 bottles per minute
Lab, batch and startup work
Sigma Pro
Semi-automatic, 15 to 20 bottles per minute
Small batch production
Sigma Eco
Inline, 25 feet per minute
Entry inline, 20 to 85 mm
Sigma I Neo
Inline, 32 feet per minute
Low to mid volume
Sigma Neo 65
Inline, 40 feet per minute
Mid volume, any cap shape
Sigma II Neo Touch
Inline, 55 feet per minute
Mid to high volume
Sigma III Touch
Inline, 80 feet per minute
High-volume GMP lines with inspection and data
Sigma Jet
Inline, 100 feet per minute
Maximum throughput lines
Throughput and Total Cost of Ownership
80 FPM
Line Speed to Containers Per Minute
Eighty feet per minute is the conveyor speed. With small pharma and nutraceutical caps, that handles a few hundred containers per minute, depending on your container diameter and pitch. Share your sizes and we confirm the exact rate.
No Water Requirement
Waterless Running Cost
The 100% air-cooled coil runs at ambient temperature with no water circulation to power or maintain. You remove a whole class of running cost and a common downtime source.
IGBT
Power-Efficient and Stable
Solid-state IGBT power with 100 percent digital variable output keeps the seal stable through voltage swings and avoids tap changing, which protects uptime and lowers energy waste.
Fewer maintenance tasks, faster recipe-based changeover and a stable seal lower your cost per sealed container. Total cost of ownership beats a low sticker price.
Inspection, Rejection and Production Data
The touch screen is more than a control panel. It watches every seal, removes the ones that fail, and keeps a record your quality team can audit. This is the capability that separates the III Touch from entry and semi-automatic sealers.
- Touch-screen control for inspection and rejection of every seal
- Supervisory password protection with operator lockout
- Recipe management for instant, repeatable SKU changeover
- Container, cap and foil counters for full run accountability
- Descriptive fault information and internal monitoring of all critical operating data
Audit-Ready by Design
Data logging and reject control support GMP and quality requirements out of the box. For lines that need full CFR 21 Part 11 compliance, the Sigma Jet CFR21 model adds compliant, auditable sealing on the same platform.
Recipes
Stored and locked
Counters
Container, cap, foil
Faults
Described and logged
Access
Password controlled
Where the Sigma III Touch Is Used
Pharma & Healthcare
Tamper evidence and a moisture barrier for high-speed tablet and syrup lines. Trusted by names like Sun Pharma and Dr. Reddy’s.
Nutraceutical
High-throughput foil seals on supplement and powder bottles across mixed SKUs.
Food & Beverages
Freshness and leak prevention at line speed for sauces, syrups and powders. Trusted by names like Nestle, Tata Tea and ITC.
Dairy
Clean, airtight seals on dairy cups and bottles that block spills in transit.
Personal Care & Cosmetics
Leak protection and theft evidence for lotions, creams and oils. Trusted by packers like Alpla and Weener.
Agro Chemicals
Secure seals across mixed cap sizes on agrochemical bottles. Trusted by names like Syngenta.
Petro Chemicals
Foil seals for petrochemical containers in high-volume packing.
Speciality Chemicals
A reliable barrier under the cap for aggressive specialty chemical contents.
Compliance and Safety, Built In
The Sigma III Touch is a GMP model, designed in a DSIR-certified R and D environment with password-protected recipes, data logging and reject control that support audit requirements. For lines that need full CFR 21 Part 11 compliance, the Sigma Jet CFR21 model runs on the same platform.
Seals rarely fail without a reason. The usual variables are air gap and coil height, line speed, power output, cap torque and a contaminated neck finish. The recipe holds your proven settings, and the on-board monitoring flags drift before it becomes a reject.
GMP Model
DSIR-Certified R and D
Highest level R and D accreditation
Over-Voltage Protection
Guards the machine and the seal
Over-Current Protection
Stable output through supply swings
Over-Temperature Protection
Protects the coil and electronics
Conveyor Stop and Alarms
Operator and product safety on the line
Sigma III Touch Technical Specifications
- Parameter
- Sigma III Touch Specification
Machine Type
High-speed automatic inline induction cap sealer (GMP model)
Max Line Speed
80 feet per minute
Cap Diameter Range
20 mm to 120 mm (universal sealing coil)
Sealing Coil Height Movement
350 mm, with height indicator and position lock
Cooling
100 percent air-cooled, waterless, ambient temperature operation
Power Electronics
IGBT solid-state, 100 percent digital variable output, no tap changing
Control
PLC controlled with touch-screen HMI
On-Board Functions
Inspection and rejection, recipe management, container, cap and foil counters, fault logs, data monitoring
Construction
Stainless steel, self-standing with no brackets or cart, castor wheels, station pads
Power Input
230 V AC, single phase, 50/60 Hz
Safety
Over-voltage, over-current and over-temperature protection, conveyor stop and alarms
Head Options
Flat, deep tunnel, peep tunnel, custom
Configuration varies with cap and closure type. For liner selection, custom head tooling and application support, contact Sigma CapSeal applications engineering.
50+
Years of Experience
85+
Countries Served
250+
Engineers on the Team
1974
Engineering Since
60 Million Bottles Sealed Every Hour
Across more than 50 industries worldwide, products are sealed on Sigma machines every hour of every day. The III Touch carries that field-proven heritage onto your high-speed line.
Why Choose Sigma III Touch
A high-speed sealer is only as good as the support behind it. Sigma CapSeal built its first heating equipment in 1974, developed India’s and Asia’s first induction sealer in 1989, and now serves clients in over 85 countries from a DSIR-certified R and D base with 35 global service centers.
That reach means spare parts and after-sales support arrive at your plant fast, with a 98.94 percent on-time delivery record behind every order. You buy a production asset and a service partner, not just a machine.
Trusted by leading manufacturers worldwide
Nestle
Sun Pharma
Dr. Reddy’s
Tata Tea
ITC
Syngenta
Alpla
Frequently Asked Questions: Sigma III Touch
Common questions from packaging engineers, production managers, QA teams and procurement evaluating the Sigma III Touch.
How fast is the Sigma III Touch in containers per minute at 80 FPM?
80 feet per minute is the conveyor speed. Containers per minute depend on your container diameter and spacing, but for small pharma and nutraceutical caps it is usually a few hundred per minute. Send your sizes and we confirm the exact rate.
Is the Sigma III Touch a GMP and USFDA 21 CFR compliant machine?
Yes. It is a GMP model built in a DSIR-certified R and D environment, with password-protected recipes, data logging and reject control for audits. For full CFR 21 Part 11, choose the Sigma Jet CFR21 on the same platform.
What cap sizes and closure types can the universal coil seal?
One universal coil seals every cap from 20 mm to 120 mm with no coil swaps. Flat, deep tunnel, peep tunnel and custom heads cover CRC, dome, sports and spout, snap-on, flip-top, continuous-thread and conical closures.
How does it differ from the Sigma II Neo Touch and the Sigma Jet?
All are inline sealers on one platform: the II Neo Touch runs at 55 feet per minute, the III Touch at 80 with full recipe and reject control, and the Jet at 100 for maximum throughput.
Does it need a water chiller?
No. It is 100 percent air-cooled and runs at ambient temperature, with no water circulation required.
How does the inspection and rejection system work?
The touch screen checks each seal and flags any that miss. Reject logic removes them, and container, cap and foil counters keep the run auditable.
